Two jog wheels the size of drink coasters. A crossfader down the middle, a channel fader on either side, a row of EQ knobs, a bank of rubber pads. That is the digital DJ controller, and it has been the digital DJ controller for most of twenty years. The finish changes, the price climbs, the body plan holds.
There's a reason it settled into one shape. When DJing moved off vinyl and CDs onto laptops in the late 2000s, the hardware copied the rig DJs already knew, the CDJ-and-mixer setup, so the jump wouldn't feel like starting from zero. It worked. It lowered the barrier and brought a lot of people in. It also quietly standardized the choreography: the same nudge of a jog, the same fader pull, the same three-band twist, on nearly every controller built since.
A few designers never went along with it. They build controllers that ask a different question: what should your hands actually be doing when you mix? Most gear answers by imitating a pair of CDJs. These don't bother. The answers run from pocket-sized to hand-built to deliberately blank. None of them will take over a club booth. All of them are worth knowing about.
Teenage Engineering's pocket mixer you play like an instrument

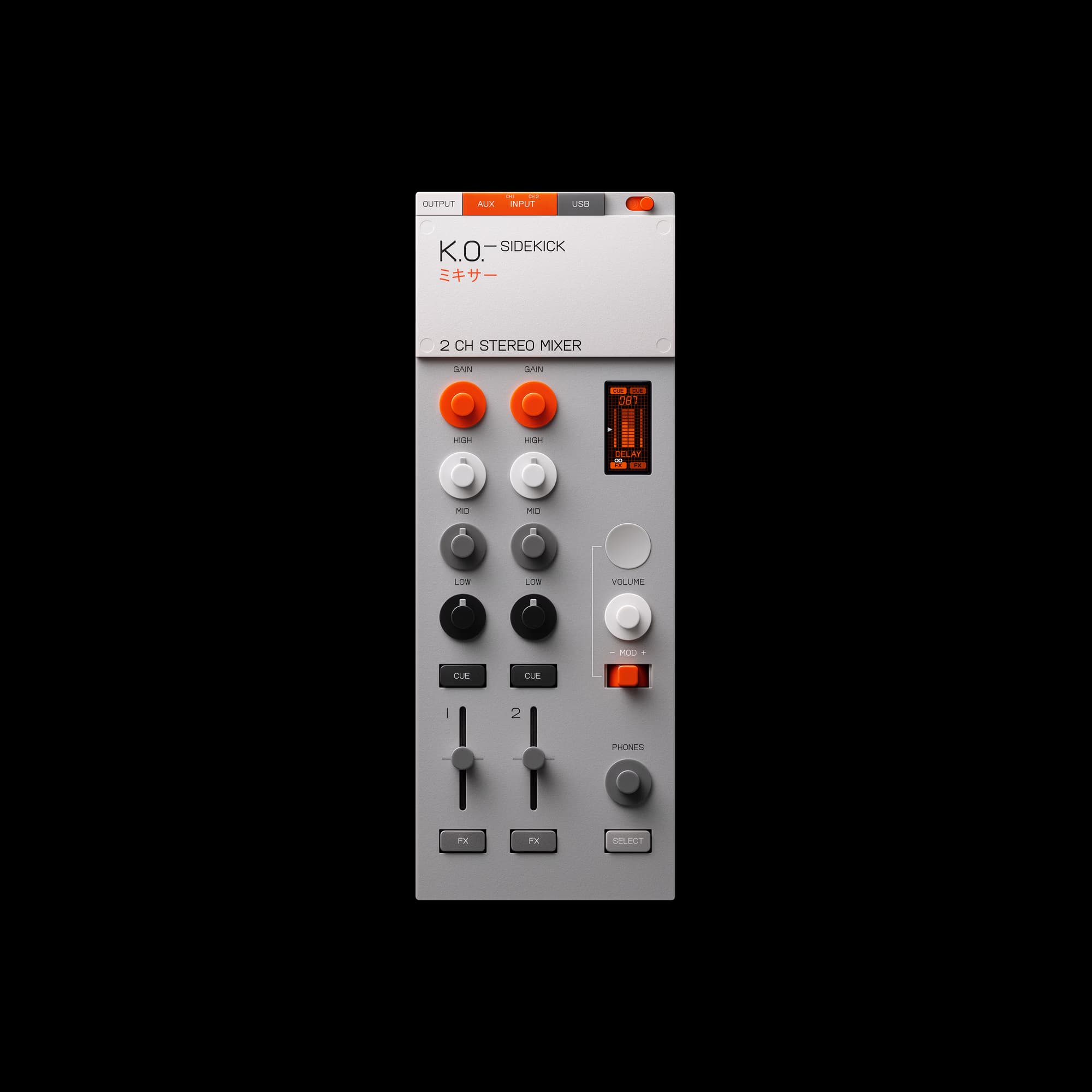

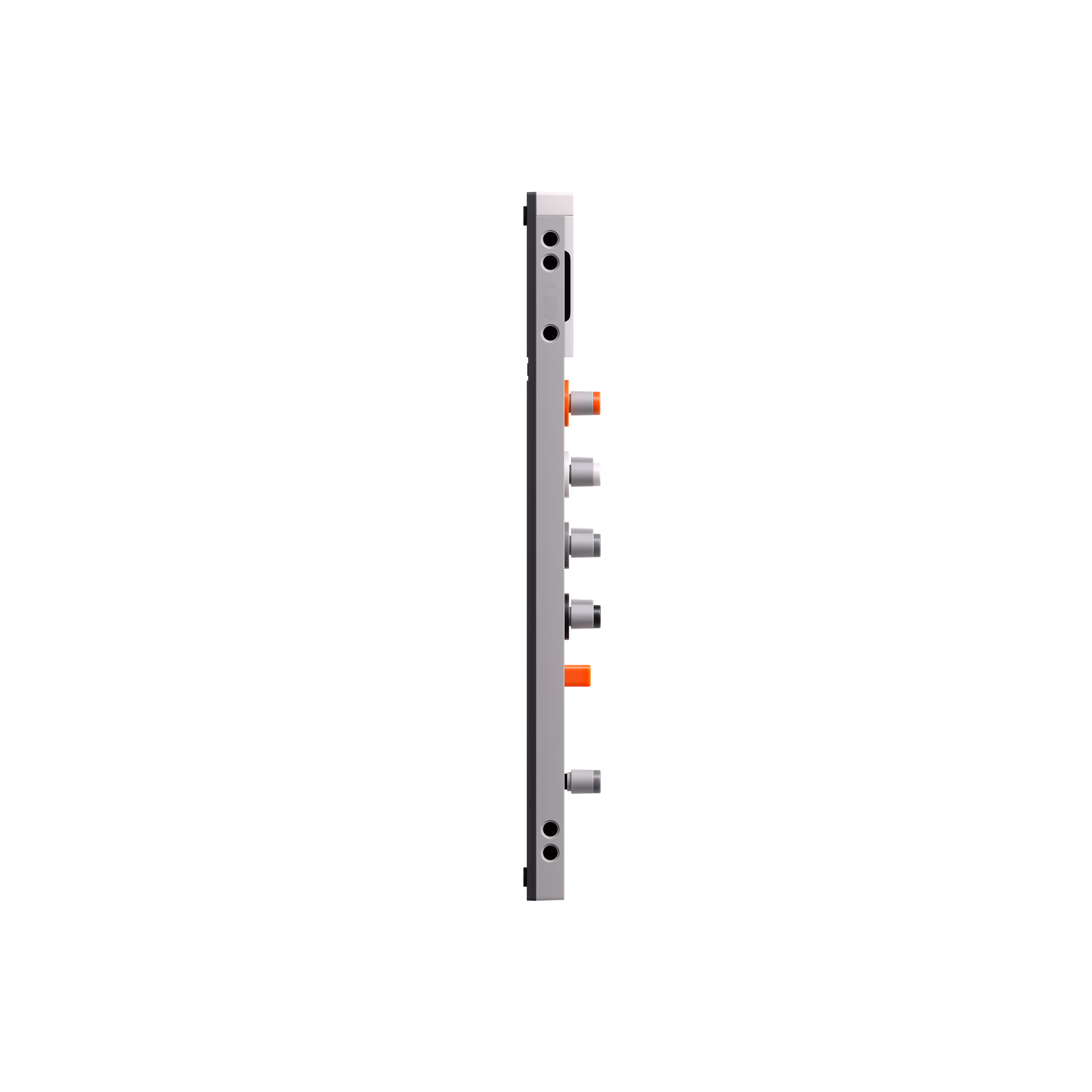

The EP-136 K.O. Sidekick is a 16-millimeter-thin slab you could lose in a jacket pocket, and it weighs 300 grams. For $179 it gives you a two-channel stereo mixer, a six-effect processor, and an 8-in/4-out USB-C audio interface, all in the same little frame.
On paper that's a spec sheet. In the hands it's something else. Each channel carries the usual volume fader plus a gain stage with 24 dB of cut or boost, a compressor with three modes, and a three-band EQ that switches between a DJ curve with full kills, a parametric voicing, and a studio one. The part that matters sits at the bottom of each channel strip: an FX send button that throws the signal into the onboard processor, whose six effects (filter, loop, delay, tape, tremolo, dub siren) you ride in real time with a force-sensitive pad and a small bidirectional stick. A beat-detection algorithm locks those effects to the incoming tempo, so a filter sweep lands on the bar instead of somewhere near it. There's even a sequencer that records your hand movements and plays them back, so a sweep you nailed once can repeat itself.
It is fiddly, and Teenage Engineering doesn't pretend otherwise. The 3.5 mm jacks sit so close together that fat, well-shielded cables won't fit comfortably. Plug it into an Android phone and it tends to push all eight channels out at once with no way to separate them, so dry and wet signals bleed into each other. The problem vanishes on iOS and macOS. But the thing is genuinely playable, the way an instrument is playable. It even snaps to the other EP units, the EP-133 sampler and the medieval-themed EP-1320, with little plastic pegs, so the mixer becomes one tile in a larger console you assemble yourself.
The TX-6: a DJ rig hiding inside a design object

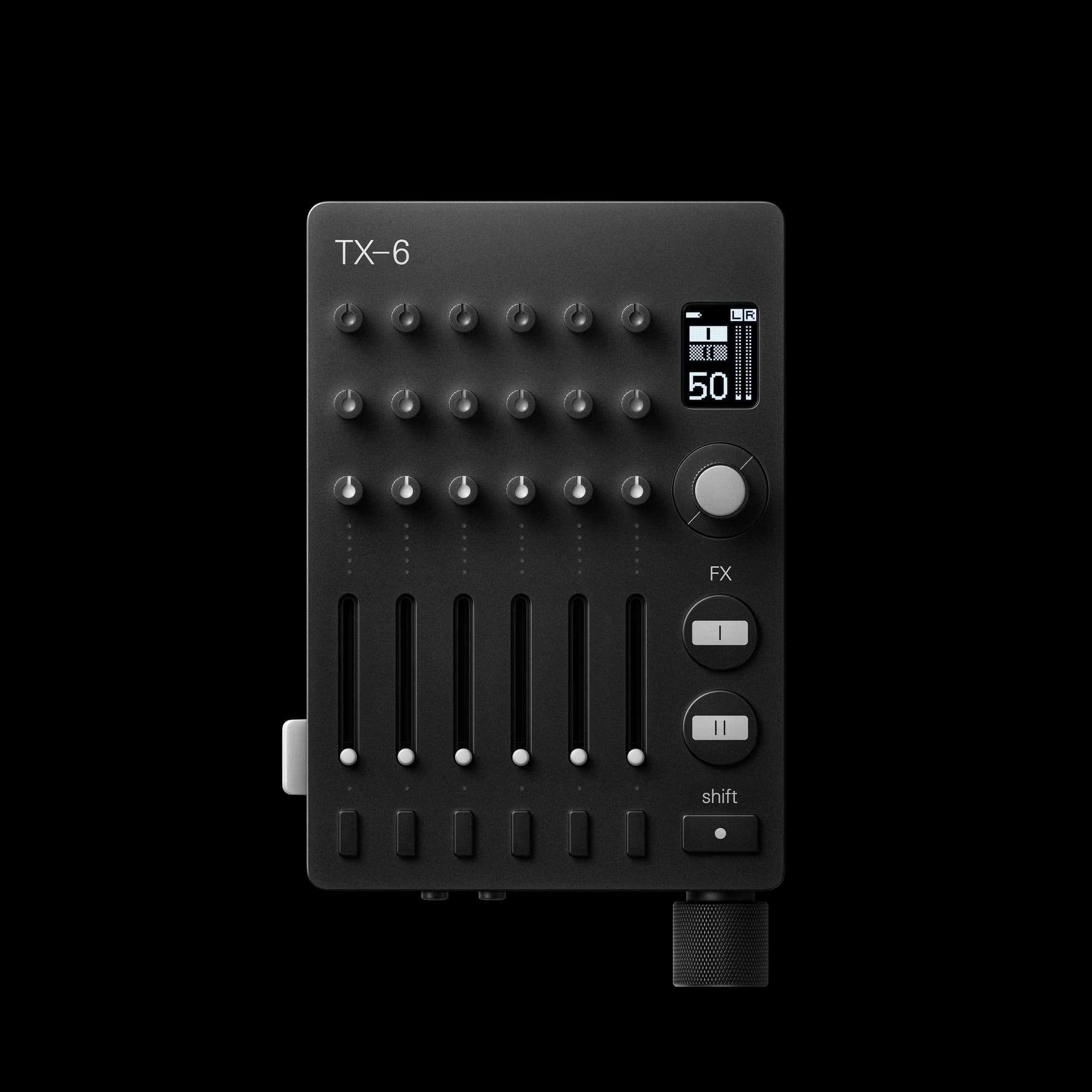

If the Sidekick is the playful one, the TX-6 Field Mixer is the one that belongs in a glass case. It's a six-channel mixer machined from a block of 6063 aluminum, backed in PU leather, running eight hours on a charge, with a synthesizer, a drum machine, and a 12-channel audio interface tucked inside. It's small enough to palm and built like a watch.
The DJ trick is the best part. The TX-6 has no crossfader, until you turn it on its side. In "DJ Mode" the hardware reassigns itself: the first channel fader becomes a crossfader between channels five and six, and the remaining knobs turn into a three-band EQ, filter cuts, or hands on the effects engine. A mixer that looks like field-recording gear quietly unfolds into a tiny DJ setup, then folds back.
Intech Grid: build the layout you actually want
Most controllers ship with their decisions already made. Intech Studio's Grid Series 3 ships you the decisions. It's a modular system of four-inch-square blocks that lock together with neodymium magnets on all four edges; spring-loaded pins carry both power and high-speed MIDI across the seam, so a single USB-C cable can feed a chain of up to eight modules.

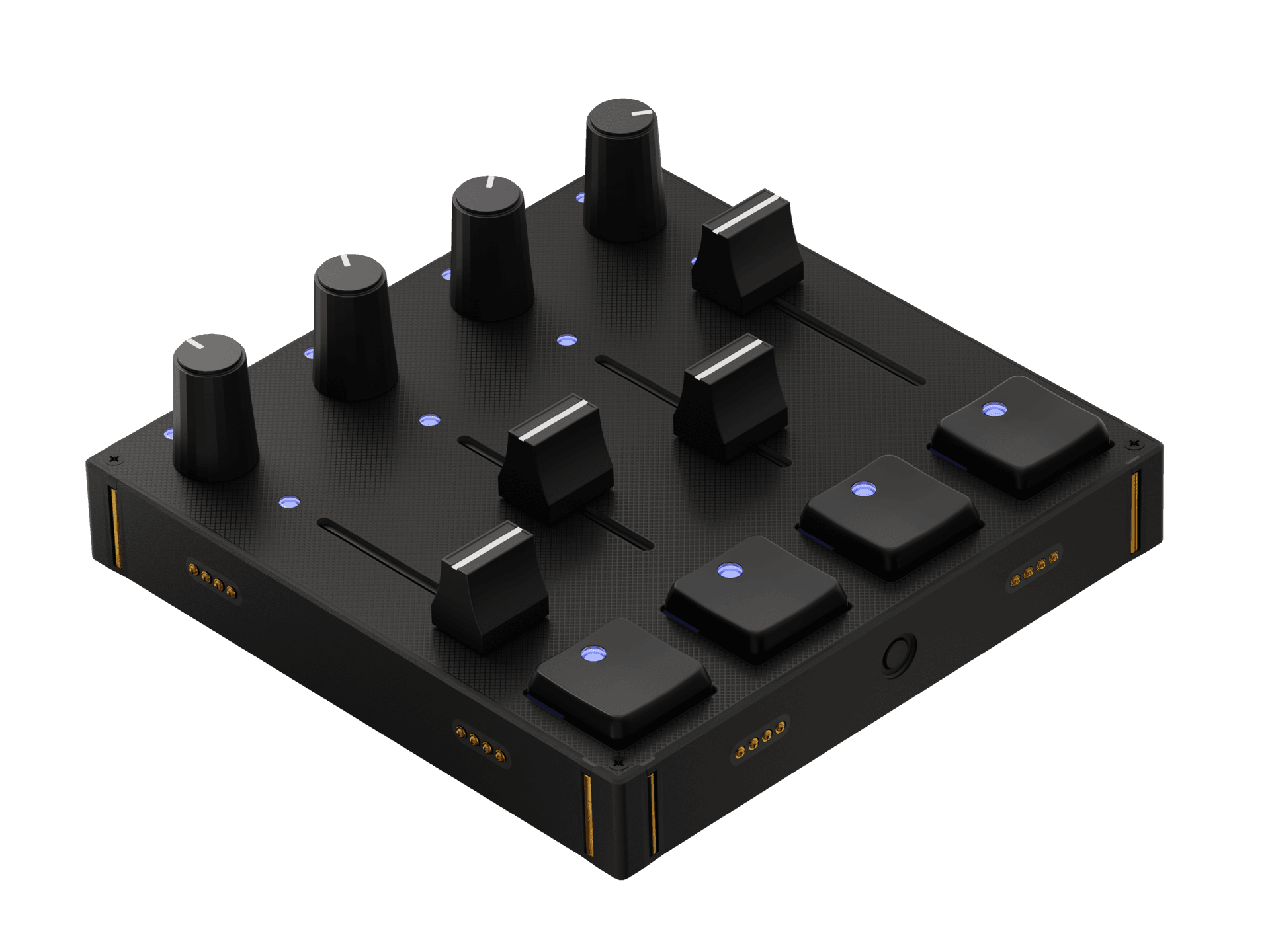

You pick the modules the way you'd pick parts for a rig. One block carries two high-resolution metal jog wheels for scratching and pitch-bends. Another packs four 45 mm faders and a row of RGB-ringed buttons; a third lays out a 4×4 grid of knobs for EQs and filters. Chain the ones your hands want, skip the rest. You can buy them assembled or as DIY kits that go together with a single PH0 screwdriver and no soldering, and you recolor the face-plates while you're in there.
For DJing, Intech publishes a ready-made TEK2 DJ setup in its Profile Cloud. Drop a TEK2, a PO16, and a PBF4 in a row, load the config into Traktor Pro or map it in Mixxx, and the jogs drive the decks, the knobs become a three-band EQ, the faders ride the channel levels. If that stock mapping doesn't suit you, the open-source Grid Editor lets you assign multi-layered commands, with pre-built action blocks for the cautious and custom Lua scripts for the brave, and store up to four pages of them on the hardware's own memory. The controller becomes whatever the chain and the code say it is.
Yaeltex: a controller made to your hand
Intech lets you arrange modules. Yaeltex lets you design the whole instrument. The workshop builds one-off MIDI controllers from a web app called the Factory, where you place buttons, joysticks, faders, and encoders wherever you want them and in whatever count you want. You draw it; they build it by hand. What arrives is a 2 mm aluminum face-plate set into a finished wooden frame, closer to a piece of furniture than a gadget.

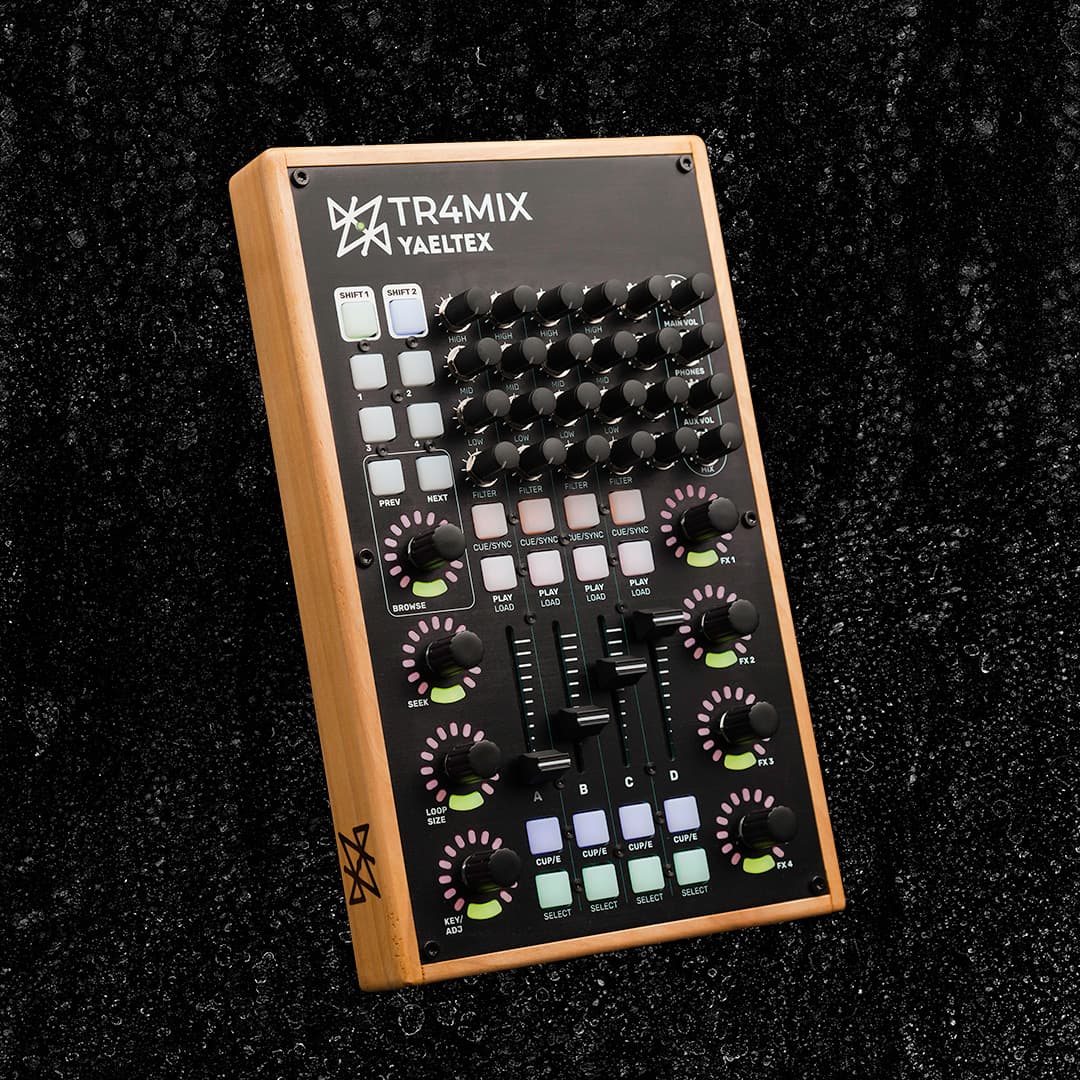

Their Tr4mix shows what that buys you. It's a panel laid out for four-deck mixing in Traktor Pro, and it crams in eight endless encoders for browsing and loop lengths, twenty mini-knobs for per-channel EQ, sends, and gains, four short-throw faders, and twelve RGB buttons for transport and hot cues. A configuration tool called Kilowhat stores up to eight banks of mappings and will send pitch bend, RPN/NRPN, program changes, even keystroke macros, so one panel can drive software that was never expecting it.
Monome: the controller that does nothing

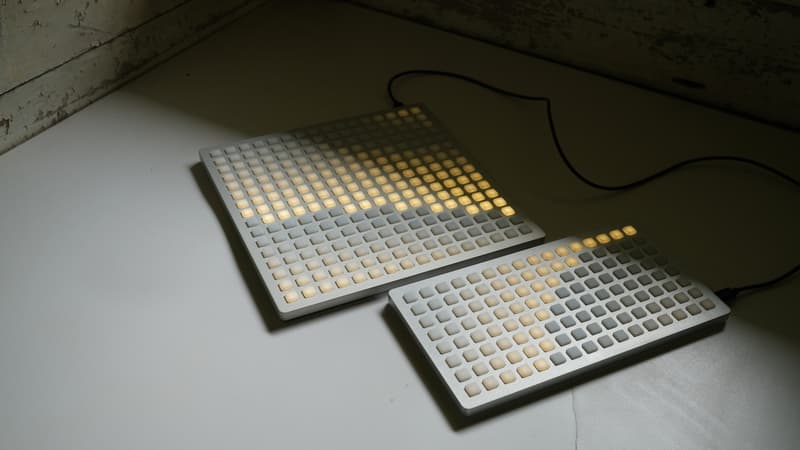

Then there's Monome, which takes the whole premise and walks out the back door. A Monome Grid is a slab of aluminum holding a field of silicone buttons lit from underneath by soft, warm-white LEDs: 128 of them in the 16×8, 256 in the bigger square. No labels. No knobs. No printed functions of any kind. Plug it in and, by design, it does nothing at all.
What it does instead is wait. The Grid speaks an open protocol over USB and hands every decision to the software you point it at: patches written in Max, SuperCollider, or Pure Data, or Monome's own sum suite, where the same field of buttons becomes a cyclic polyrhythmic music box, then a step sequencer whose top row shows the playhead, then mlr, the live sample-slicer that put these things on the map. One detail tells you everything about the philosophy. The faders have inertia. Press a button to set a level and the volume slides toward it, drifting a little before it settles, the way a real fader would if a real hand let go. Hold the button down and the value wobbles gently around the target, never quite still, a living texture that's almost impossible to coax out of hardware that snaps straight to a number.
Around the Grid, Monome built the Arc, a row of two or four big rotary encoders with 1,024 steps per turn for scrubbing audio and setting loop points, and Norns, a small scriptable sound computer that lets the whole rig run with no laptop at all, playing community-written scripts as a standalone synth, sampler, or mixer. It is the least practical thing here and, arguably, the most honest about what these controllers are really for.
The layout was always a choice
None of these will replace the rig in a club booth, and most of them aren't trying to. What they share is a hunch that the standard layout solved the wrong problem. It made digital DJing easy to start; it didn't do much to make it feel like anything under the hands. Reach for the same jog wheel ten thousand times and you stop feeling the sound through it at all.
What they offer instead is a way to make the gesture mean something again, whether that's a pocket mixer you play like an instrument or a grid of blank lights waiting to be told what to be. You probably won't gig with most of them. But the next time your hand finds a jog wheel without thinking, it's worth remembering that the shape of it was a decision someone made, and that a few people sat down and decided otherwise.
